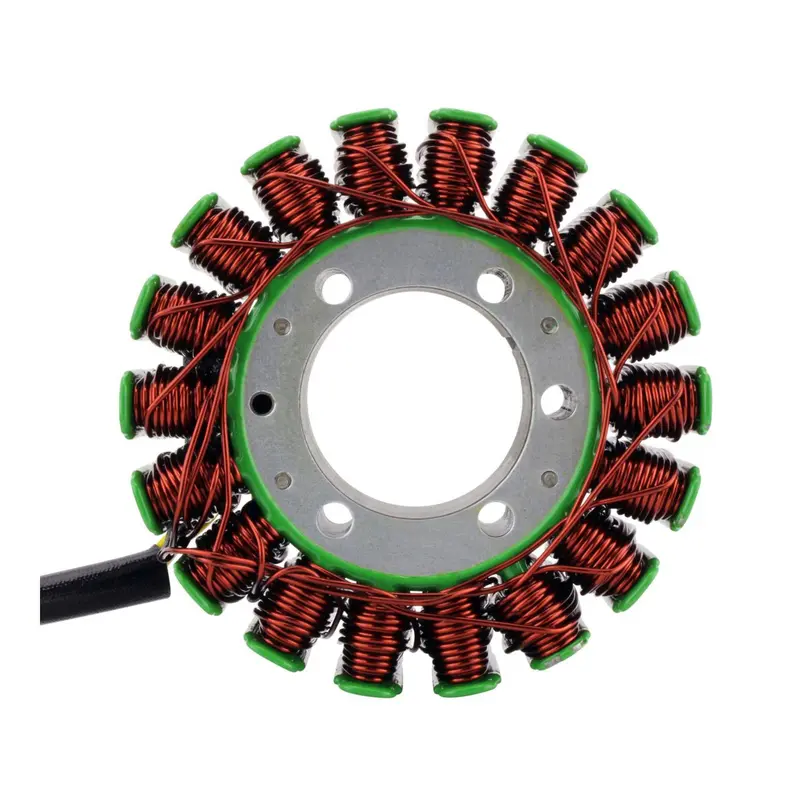

High-Torque Stator for Honda TRX500/520 (2015–2021) – RMS010107181

Description

Plug-and-play replacement stator from RMStator.

Dimensions:

• Interiordiameter: 42 mm
• Exterior diameter: 107 mm
• Thickness: 31mm
• Length of wires stator to grommet: 120 mm
• Length ofwires grommet to plug #1: 335 mm
• Length of wires grommet to plug#2: 855 mm
• Length of pickup coil’s wire to grommet: 85mm

Otherspecifications:

• Number of wires: 5
• Number ofplugs: 2
• Number of pins: 5
• Number of poles: 18
• Wireto wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms+-20%
  • Pickup: Blue to Green = 235 ohms+-20%

Details:

• Direct replacement to your original unit
• Plug-and-play directfit easy installation
• Highest grade of laminationmaterials
• Highest grade of copper winding resistant to 200 degreesCelsius
• Pick up pulsar coil included
• Connectorsincluded
• Rubber grommet included
• All products shipped aretested
