Description

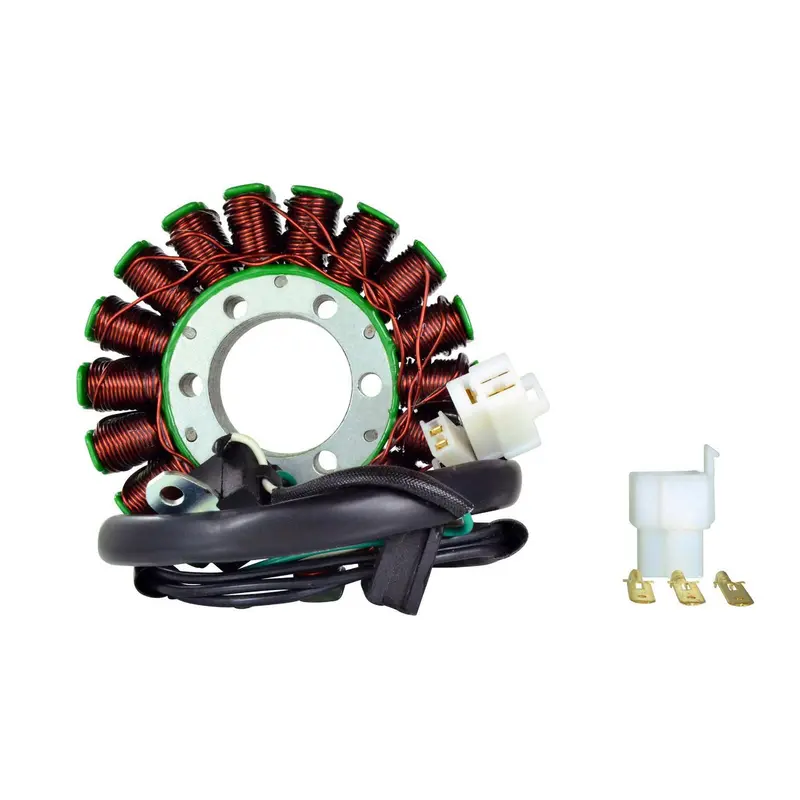

Brand new aftermarket stator
- Directreplacement to your original unit
- Plug-and-play direct fit easyinstallation
- Highest-grade laminationmaterials
- Highest-grade copper windings resistant to 200 degreesCelsius.
- Pick up pulsar coil included
- Connectorincluded
- Rubber grommet included
- All products shipped aretested
Specifications:
Dimensions:
- Interior diameter: 36 mm
- Exterior diameter: 95mm
- Thickness: 32 mm
- Length of wires stator to grommet: 165mm
- Length of wires grommet to plug:585 mm / 780 mm
- Lengthof pickup coil’s wire to grommet: 88 mm
Otherspecifications:
- Number of wires: 6
- Number of plugs:3
- Number of pins: 6
- Number of poles:18
Wire-to-wire resistance:
- Alternator :Yellowbetween each Yellow = 0.4 ohms +-20%
- Pickup: Green/White toYellow/White = 125 ohms +-20%
- Source: Black/Red to Ground = 210ohms +-20%
| Make | Model | Year Range |
|---|---|---|
| Aprilia | 125 Sport City | 2004 – 2008 |
| Aprilia | 250 Sport City IE | 2008 – 2012 |
| Aprilia | Sport City 250 IE | 2012 |
| Aprilia | SR300 Max IE | 2012 |
| Gilera | Nexus 500 | 2003 – 2005 |
| Piaggio | MP3 300 | 2013 |
| Piaggio/Vespa | BV 250 Beverley | 2006 – 2009 |
| Piaggio/Vespa | GTS 250 ABS, IE | 2006 – 2008 |
| Piaggio/Vespa | GTS 300 Super, Supersport | 2008 – 2012 |
| Piaggio/Vespa | GTV 250 | 2006 – 2008 |
| Piaggio/Vespa | GTV 250 | 2010 |
| Piaggio/Vespa | MP3 250 | 2008 – 2010 |
| Vespa | GTS300 Super | 2008 – 2015 |
| Vespa | GTS300 Super Sport | 2013 – 2015 |
| Vespa | GTV300 | 2013 – 2014 |
